Description
You can use this cable to different applicaton.
Cable length can be make as different length ,example 1M, 2M or other size.
Show you how to use them in your installation.
It show you how to use T Connector ,and with LED to power supply and any dmx controllers.
When you make cable by yourself, here have signal guide for you.

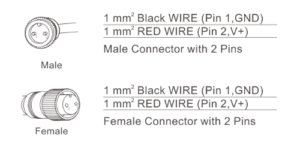

1: 2Pin for power of led. It show which one is VCC,and which one is GND.
2: 4Pin for led with signal, merge power and signal together. You can connect them with one line.
3: If your controller is RJ45 output, we can make adapter for you with it.
4: DMX 512 Standand signal define with XLR 3Pin and XLR 5Pin, please noted female and male are different.
